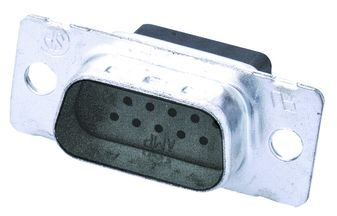

Please contact us for more photos of 5-747905-2
| Part Number | 5-747905-2 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 489370 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn D-Subminiature SKT 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port |
| Category | Connectors |
| Family | Connector D-Subminiature |
| ROHS Compliant | Yes |
| MSL Level | 5-747905-2 |
| Datasheet download |  5-747905-2.pdf |
| Part Number | 5-747905-2 |
|---|---|
| Family Name | AMPLIMITE D-subminiature Connectors |
| Product Dimensions | 30.8 x 14.9 x 12.5 mm |
| Max Processing Temp | 240 |
| Mounting | Panel Mount |
| Termination Method | Solder Cup |
| Body Orientation | Straight |
| Pitch | 2.77 mm |
| Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate |
| Gender | SKT |
| Contact Plating | Gold Over Nickel |
| Rad Hard | No |
| Lead Finish | Tin/Copper |
| Operating Temperature | -55 to 105 °C |
| Product Depth | 14.9 mm |
| Product Height | 12.5 mm |
| Product Length | 30.8 mm |
| Replacement Part Number | PART-5-747905-2 |
| Weight | Contact us |
| Country of Origin | - |
