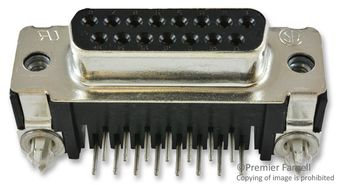

Please contact us for more photos of 5747842-6
| Part Number | 5747842-6 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 349200 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn D-Subminiature PIN 25 POS 2.75mm Solder RA Thru-Hole 25 Terminal 1 Port |
| Category | Connectors |
| Family | Connector D-Subminiature |
| ROHS Compliant | Yes |
| MSL Level | 5747842-6 |
| Datasheet download |  5747842-6.pdf |
| Part Number | 5747842-6 |
|---|---|
| Number of Contacts | 25 |
| Number of Ports | 1 |
| Pitch | 2.75 mm |
| Operating Temperature | -55 to 105 °C |
| Rad Hard | No |
| Gender | PIN |
| Body Orientation | Right Angle |
| Max Processing Temp | 240|260|265 |
| Product Dimensions | 53.04 x 18.75 x 12.55 mm |
| Family Name | AMPLIMITE D-subminiature Connectors |
| Termination Method | Solder |
| Contact Plating | Gold Over Nickel |
| Contact Material | Brass |
| Type | D-Subminiature |
| Number of Terminals | 25 |
| Lead Finish | Tin |
| Mounting | Through Hole |
| Housing Material | Nylon|Polyester |
| Product Depth | 18.75 mm |
| Product Height | 12.55 mm |
| Product Length | 53.04 mm |
| Replacement Part Number | PART-5747842-6 |
| Weight | Contact us |
| Country of Origin | - |
