66507-3 TE Connectivity

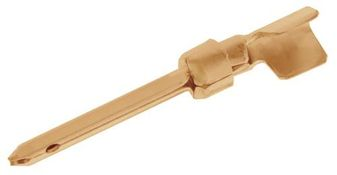

66507-3 Images

Please contact us for more photos of 66507-3

Part Number	66507-3
Manufacturer	TE Connectivity
Quantity in stock	645780 Pieces
Market Price	-
Our Better Price	Send by email: [email protected]
Delivery Time	1 day (can ship today)
Description	Contact PIN Crimp ST Cable Mount Strip
Category	Connectors
Family	Connector Contacts
ROHS Compliant	Yes
MSL Level	66507-3
Datasheet download	66507-3.pdf

Request Quotation for 66507-3

66507-3 Specifications

Part Number	66507-3
Series Name	HDP-20
Family Name	AMPLIMITE D-subminiature Connectors
Lead Finish	Gold
Mounting	Cable Mount
Wire Size	24 to 28 AWG
Contact Plating	Gold Over Palladium Nickel/ Gold Over Nickel
Contact Size	20
Shielded	No
Product Dimensions	14.86 x 2.16 mm
Contact Material	Brass
Gender	PIN
Body Orientation	Straight
Termination Method	Crimp
Product Depth	2.16 mm
Product Length	14.86 mm
Replacement Part Number	PART-66507-3
Weight	Contact us
Country of Origin	-
