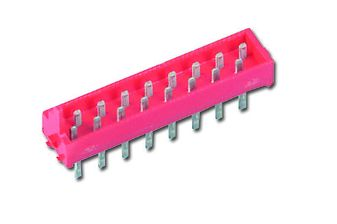

Please contact us for more photos of 8-215464-8
| Part Number | 8-215464-8 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 315400 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn FFC Connector M 18 POS 2.54mm Solder ST Thru-Hole Box |
| Category | Connectors |
| Family | Connector FFC-FPC |
| ROHS Compliant | Yes |
| MSL Level | 8-215464-8 |
| Datasheet download |  8-215464-8.pdf |
| Part Number | 8-215464-8 |
|---|---|
| Termination Method | Solder |
| Operating Temperature | -40 to 105 °C |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Max Processing Temp | 240|260|265 |
| Wire Size | 20 to 28 AWG |
| Contact Plating | Tin Over Nickel |
| Contact Gender | M |
| Housing Color | Red |
| Rad Hard | No |
| Pitch | 2.54 mm |
| Contact Material | Phosphor Bronze |
| Product Dimensions | 25.9 x 5 x 7.1 mm |
| Housing Material | Polyester |
| Product Depth | 5 mm |
| Product Height | 7.1 mm |
| Product Length | 25.9 mm |
| Replacement Part Number | PART-8-215464-8 |
| Weight | Contact us |
| Country of Origin | - |
