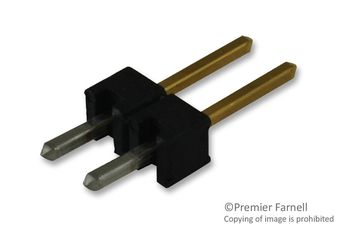

Please contact us for more photos of 87220-2
| Part Number | 87220-2 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 128530 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | 87220-2 |
| Datasheet download |  87220-2.pdf |
| Part Number | 87220-2 |
|---|---|
| Product Dimensions | 4.67 x 2.54 x 10.37 mm |
| Contact Material | Copper Alloy |
| Lead Finish | Gold |
| Pitch | 2.54 mm |
| Contact Plating | Gold Over Nickel |
| Rad Hard | No |
| Housing Material | Thermoplastic |
| Termination Method | Solder |
| Max Processing Temp | 240 |
| Housing Color | Black |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Operating Temperature | -65 to 105 °C |
| Gender | HDR |
| Product Depth | 2.54 mm |
| Product Height | 10.37 mm |
| Product Length | 4.67 mm |
| Replacement Part Number | PART-87220-2 |
| Weight | Contact us |
| Country of Origin | - |
