Please contact us for more photos of LMP8480MMX-S NOPB
| Part Number | LMP8480MMX-S NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 294100 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | SP Amp Current Sense Amp Single 76V 8-Pin MSOP T R |
| Category | Amplifiers IC |
| Family | SP Amplifier |
| ROHS Compliant | Yes |
| MSL Level | LMP8480MMX-S NOPB |
| Datasheet download |  LMP8480MMX-S NOPB.pdf |
| Part Number | LMP8480MMX-S NOPB |
|---|---|
| Type | Current Sense Amplifier |
| Power Supply Type | Single |
| Maximum Single Supply Voltage | 76 V |
| Minimum CMRR | 124 dB |
| Rad Hard | No |
| Supplier Package | MSOP |
| Maximum Voltage Gain | 26.02 dB |
| Operating Temperature | -40 to 125 °C |
| Maximum Supply Current | 0.088@76 mA |
| Minimum PSRR | 122 dB |
| Minimum Single Supply Voltage | 4.5 V |
| Maximum Input Bias Current | 6.3@76 uA |
| Pin Count | 8 |
| Product Dimensions | 3 x 3 x 0.86 mm |
| Mounting | Surface Mount |
| Rail to Rail | No |
| Number of Channels per Chip | 1 |
| Package | 8MSOP |
| Replacement Part Number | PART-LMP8480MMX-S NOPB |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Texas Instruments | SP Amp Difference Amplifier Single \u00b118V 36V 8-Pin SOIC T R Download PDF datasheet for INA143UA 2K5.pdf |
|
Texas Instruments | SP Amp ISOL Amp Single \u00b118V 8-Pin PDIP Tube Download PDF datasheet for ISO124P.pdf |
|

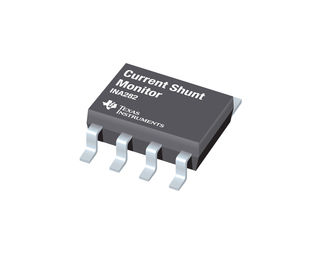

Texas Instruments | SP Amp Current Shunt Monitor Single 18V 8-Pin SOIC T R Download PDF datasheet for INA282AIDR.pdf |
|
Texas Instruments | SP Amp Current Shunt Monitor Single 18V 5-Pin SOT-23 T R Download PDF datasheet for INA193AQDBVRQ1.pdf |
|
Maxim Integrated | SP Amp Current Sense Amp Single 76V 8-Pin uMAX Download PDF datasheet for MAX4080SAUA+.pdf |
|
Texas Instruments | SP Amp Variable Gain Amp Single \u00b118V 8-Pin SOIC Tube Download PDF datasheet for PGA103U.pdf |
|
Texas Instruments | SP Amp Difference Amplifier Single \u00b118V 36V 8-Pin SOIC T R Download PDF datasheet for INA132UA 2K5.pdf |
|

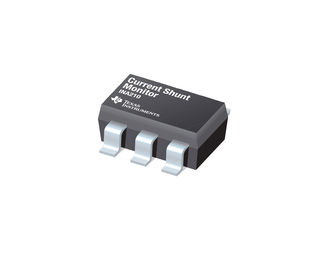

Texas Instruments | SP Amp Current Shunt Monitor Single 26V 6-Pin SC-70 T R Download PDF datasheet for INA210AIDCKT.pdf |
|
