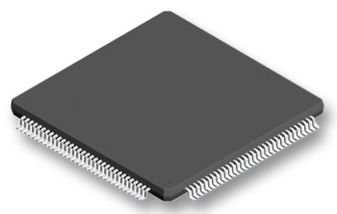

Please contact us for more photos of MSP430F47166IPZ
| Part Number | MSP430F47166IPZ |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 587970 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | MCU 16-bit MSP430 RISC 92KB Flash 2.5V 3.3V 100-Pin LQFP Tray |
| Category | Microcontrollers MCU IC |
| Family | 16 Bit Microcontrollers MCU |
| ROHS Compliant | Yes |
| MSL Level | MSP430F47166IPZ |
| Datasheet download |  MSP430F47166IPZ.pdf |
| Part Number | MSP430F47166IPZ |
|---|---|
| Device Core | |
| Display Driver | |
| Data Bus Width | 16 Bits |
| Watchdog | 1 |
| Instruction Set Architecture | RISC |
| Minimum Operating Supply Voltage | 1.8 V |
| Supplier Package | LQFP |
| Operating Supply Voltage | 2.5|3.3 V |
| Operating Temperature | -40 to 85 °C |
| Max Processing Temp | 260 |
| Rad Hard | No |
| Lead Finish | Gold |
| Analog Comparators | 1 |
| RAM Size | 4 KB |
| Special Features | LCD Controller |
| MSL Level | 3 |
| On-Chip ADC | 6-chx16-bit |
| Number of Programmable I/Os | 68 |
| Product Dimensions | 14 x 14 x 1.4 mm |
| Maximum Speed | 16 MHz |
| LCD Segments | 160 |
| Maximum Operating Supply Voltage | 3.6 V |
| Mounting | Surface Mount |
| Number of Timers | 2 |
| Screening Level | Industrial |
| Interface Type | I2C/SCI/SPI/UART |
| Pin Count | 100 |
| Program Memory Type | Flash |
| Program Memory Size | 92 KB |
| Package | 100LQFP |
| Replacement Part Number | PART-MSP430F47166IPZ |
| Weight | Contact us |
| Country of Origin | - |
