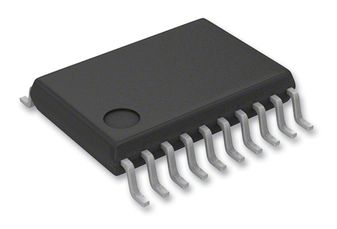

Please contact us for more photos of MSP430G2312IPW20R
| Part Number | MSP430G2312IPW20R |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 303040 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | MCU 16-bit MSP430 RISC 4KB Flash 2.5V 3.3V 20-Pin TSSOP T R |
| Category | Microcontrollers MCU IC |
| Family | 16 Bit Microcontrollers MCU |
| ROHS Compliant | Yes |
| MSL Level | MSP430G2312IPW20R |
| Datasheet download |  MSP430G2312IPW20R.pdf |
| Part Number | MSP430G2312IPW20R |
|---|---|
| Number of Timers | 1 |
| Rad Hard | No |
| Product Dimensions | 6.6 x 4.5 x 1.05 mm |
| Instruction Set Architecture | RISC |
| Maximum Speed | 16 MHz |
| Operating Temperature | -40 to 85 °C |
| Analog Comparators | 1 |
| Mounting | Surface Mount |
| Max Processing Temp | 260 |
| Supplier Package | TSSOP |
| MSL Level | 1 |
| Pin Count | 20 |
| RAM Size | 256 byte |
| Interface Type | I2C/SPI |
| Program Memory Size | 4 KB |
| Operating Supply Voltage | 2.5|3.3 V |
| Program Memory Type | Flash |
| Watchdog | 1 |
| Data Bus Width | 16 Bits |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Supply Voltage | 1.8 V |
| LCD Segments | |
| Number of Programmable I/Os | 16 |
| Lead Finish | Gold |
| Display Driver | |
| Device Core | |
| Package | 20TSSOP |
| Replacement Part Number | PART-MSP430G2312IPW20R |
| Weight | Contact us |
| Country of Origin | - |
