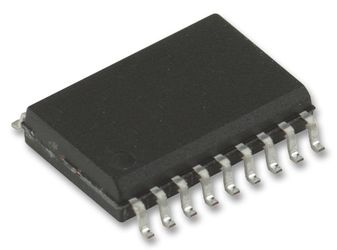

Please contact us for more photos of OPA564AQDWPRQ1
| Part Number | OPA564AQDWPRQ1 |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 509530 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | OP Amp Single GP \u00b112V 24V 20-Pin HSOP EP T R |
| Category | Amplifiers IC |
| Family | OP Amp |
| ROHS Compliant | Yes |
| MSL Level | OPA564AQDWPRQ1 |
| Datasheet download |  OPA564AQDWPRQ1.pdf |
| Part Number | OPA564AQDWPRQ1 |
|---|---|
| MSL Level | 3 |
| Minimum Dual Supply Voltage | ±3.5 V |
| Maximum Dual Supply Voltage | ±12 V |
| Maximum Operating Supply Voltage | ±12|24 V |
| Typical Dual Supply Voltage | ±5|±9 V |
| Typical Slew Rate | 40@±12V V/us |
| Product Dimensions | 12.82 x 7.52 x 2.55 mm |
| Maximum Single Supply Voltage | 24 V |
| Pin Count | 20 |
| Supplier Package | HSOP EP |
| Rail to Rail | No |
| Power Supply Type | Single|Dual |
| Shut Down Support | Yes |
| Minimum Single Supply Voltage | 7 V |
| Minimum PSRR | 100 dB |
| Typical Voltage Gain | 108 dB |
| Maximum Input Bias Current | 0.0001@±12V uA |
| Typical Gain Bandwidth Product | 17 MHz |
| Typical Input Noise Voltage Density | 102.8@±12V nV/rtHz |
| Maximum Input Offset Voltage | 20@±12V mV |
| Typical NonInverting Input Noise Current Density | 0.004@±12V pA/rtHz |
| Number of Channels per Chip | 1 |
| Mounting | Surface Mount |
| Operating Temperature | -40 to 125 °C |
| Lead Finish | Gold |
| Type | General Purpose Amplifier |
| Rad Hard | No |
| Max Processing Temp | 260 |
| Typical Single Supply Voltage | 9|12|15|18 V |
| Minimum CMRR | 70 dB |
| Package | 20HSOP EP |
| Replacement Part Number | PART-OPA564AQDWPRQ1 |
| Weight | Contact us |
| Country of Origin | - |
