Please contact us for more photos of THS4509RGTT
| Part Number | THS4509RGTT |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 833380 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | SP Amp DIFF AMP Single \u00b12.625V 5.25V 16-Pin VQFN EP T R |
| Category | Amplifiers IC |
| Family | SP Amplifier |
| ROHS Compliant | Yes |
| MSL Level | THS4509RGTT |
| Datasheet download |  THS4509RGTT.pdf |
| Part Number | THS4509RGTT |
|---|---|
| Maximum Input Bias Current | 15.5@±2.5V uA |
| Maximum Dual Supply Voltage | ±2.625 V |
| Product Dimensions | 3 x 3 x 0.9 mm |
| Maximum Single Supply Voltage | 5.25 V |
| Rad Hard | No |
| Operating Temperature | -40 to 85 °C |
| Minimum Single Supply Voltage | 3 V |
| Power Supply Type | Single|Dual |
| MSL Level | 2 |
| Typical Gain Bandwidth Product | 3000 MHz |
| Number of Channels per Chip | 1 |
| Mounting | Surface Mount |
| Max Processing Temp | 260 |
| Pin Count | 16 |
| Minimum Dual Supply Voltage | ±1.5 V |
| Supplier Package | VQFN EP |
| Lead Finish | Gold |
| Screening Level | Industrial |
| Rail to Rail | No |
| Minimum CMRR | 90 dB |
| Type | Differential Amplifier |
| Package | 16VQFN EP |
| Replacement Part Number | PART-THS4509RGTT |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Maxim Integrated | SP Amp Current Sense Amp Single \u00b130V 4-Pin UCSP T R Download PDF datasheet for MAX9634WERS+T.pdf |
|

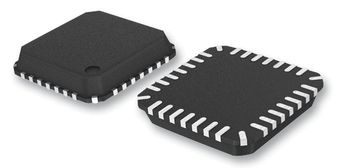

Texas Instruments | SP Amp DIFF AMP Single 5.25V 28-Pin VQFN EP T R Download PDF datasheet for PGA870IRHDT.pdf |
|
