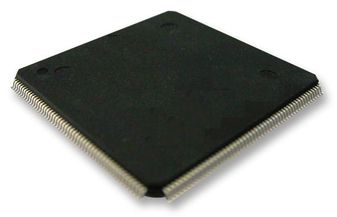

Please contact us for more photos of TMS470R1B768PGET
| Part Number | TMS470R1B768PGET |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 206520 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | MCU 16-bit 32-bit TMS470 ARM7TDMI RISC 768KB Flash 1.8V 3.3V 144-Pin LQFP Tray |
| Category | Microcontrollers MCU IC |
| Family | ARM Based Microcontrollers MCU |
| ROHS Compliant | Yes |
| MSL Level | TMS470R1B768PGET |
| Datasheet download |  TMS470R1B768PGET.pdf |
| Part Number | TMS470R1B768PGET |
|---|---|
| Instruction Set Architecture | RISC |
| Minimum Operating Supply Voltage | 1.81|3 V |
| Program Memory Size | 768 KB |
| Operating Temperature | -40 to 105 °C |
| Maximum Operating Supply Voltage | 2.05|3.6 V |
| Program Memory Type | Flash |
| Product Dimensions | 20 x 20 x 1.4 mm |
| Supplier Package | LQFP |
| Interface Type | SCI/SPI |
| Pin Count | 144 |
| Lead Finish | Gold |
| RAM Size | 48 KB |
| Number of Programmable I/Os | 86 |
| Number of Timers | 1 |
| Rad Hard | No |
| Maximum Speed | 60 MHz |
| Operating Supply Voltage | 1.8|3.3 V |
| On-Chip ADC | 16-chx10-bit |
| Data Bus Width | 16|32 Bit |
| Mounting | Surface Mount |
| Max Processing Temp | 260 |
| MSL Level | 3 |
| Screening Level | Extended Industrial |
| Device Core | ARM7TDMI |
| Package | 144LQFP |
| Replacement Part Number | PART-TMS470R1B768PGET |
| Weight | Contact us |
| Country of Origin | - |
