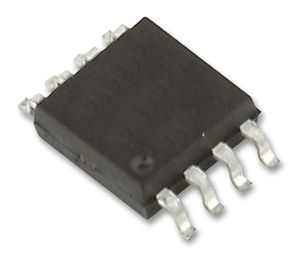

Please contact us for more photos of UCC27423QDGNRQ1
| Part Number | UCC27423QDGNRQ1 |
|---|---|
| Manufacturer | Texas Instruments |
| Quantity in stock | 697750 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | MOSFET DRVR 4A 2-OUT Lo Side Inv 8-Pin SOIC T R |
| Category | Power Management IC |
| Family | MOSFET and Power Drivers |
| ROHS Compliant | Yes |
| MSL Level | UCC27423QDGNRQ1 |
| Datasheet download |  UCC27423QDGNRQ1.pdf |
| Part Number | UCC27423QDGNRQ1 |
|---|---|
| MSL Level | 2 |
| Product Dimensions | 4.9 x 3.91 x 1.58 mm |
| Maximum Propagation Delay Time | 150 ns |
| Mounting | Surface Mount |
| Typical Operating Supply Voltage | 2.5|3.3|5 |
| Maximum Rise Time | 40 ns |
| Minimum Operating Supply Voltage | 4 V |
| Maximum Supply Current | 1.35 mA |
| Maximum Fall Time | 40 ns |
| Driver Configuration | Inverting |
| Peak Output Current | 4 A |
| Pin Count | 8 |
| Input Logic Compatibility | CMOS|TTL |
| Supplier Package | SOIC |
| Maximum Power Dissipation | 650 mW |
| Screening Level | Automotive |
| Maximum Operating Supply Voltage | 15 V |
| Output Resistance | 2.2|30 Ohm |
| Max Processing Temp | 260 |
| Lead Finish | Gold |
| Number of Outputs | 2 |
| Number of Drivers | 2 |
| Operating Temperature | -40 to 125 °C |
| Rad Hard | No |
| Driver Type | Low Side |
| Package | 8SOIC |
| Replacement Part Number | PART-UCC27423QDGNRQ1 |
| Weight | Contact us |
| Country of Origin | - |
