Please contact us for more photos of 593D226X9004A2TE3
| Part Number | 593D226X9004A2TE3 |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 676580 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 22uF 4V A CASE 10% (3.2 X 1.6 X 1.6mm) SMD 3216-18 1.5 Ohm 125\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | 593D226X9004A2TE3 |
| Datasheet download |  593D226X9004A2TE3.pdf |
| Part Number | 593D226X9004A2TE3 |
|---|---|
| Dissipation Factor | |
| Failure Rate | |
| Military Standard | |
| Leakage Current | |
| Equivalent Series Resistance | |
| Rad Hard | No |
| Max Processing Temp | 250 to 260|260 |
| Case Style | Molded |
| Product Dimensions | 3.2 x 1.6 x 1.6 mm |
| Tolerance | 10 % |
| Voltage(DC) | 4 V |
| Construction | Flat |
| Lead Finish | Matte Tin |
| Package/Case | 3216-18,A |
| Polarity | Polar |
| Capacitance Value | 22 uF |
| Mounting | Surface Mount |
| Case Size | 3216-18 |
| MSL Level | 1 |
| Operating Temperature | -55 to 125 °C |
| Product Depth | 1.6 mm |
| Product Height | 1.6 mm |
| Product Length | 3.2 mm |
| Replacement Part Number | PART-593D226X9004A2TE3 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Panasonic | Cap Tant Solid 330uF 2.5V D2E CASE 20% (7.3 X 4.3 X 1.8mm) SMD 7343,D2E 0.015 Ohm 105\u00b0C Embossed T R Download PDF datasheet for 2R5TPE330MF.pdf |
|
Vishay | Cap Tant Solid 33uF 16V C CASE 10% (6 X 3.2 X 2.5mm) SMD 6032-28 1.1 Ohm 125\u00b0C T R Download PDF datasheet for 293D336X9016C2TE3.pdf |
|
Panasonic | Cap Tant Solid 1000uF 2.5V D4 CASE 20% (7.3 X 4.3 X 3.8mm) SMD 7343,D4 0.005 Ohm 105\u00b0C Embossed T R Download PDF datasheet for ETPF1000M5H.pdf |
|
AVX | Cap Tant Solid 22uF 10V B CASE 20% (3.5 X 2.8 X 1.9mm) SMD 3528-21 2.4 Ohm 125\u00b0C T R Download PDF datasheet for TAJB226M010RNJ.pdf |
|
Panasonic | Cap Tant Solid 15uF 16V B2 CASE 20% (3.5 X 2.8 X 1.9mm) SMD 3528,B2 0.09 Ohm 105\u00b0C Embossed T R Download PDF datasheet for 16TQC15M.pdf |
|
Vishay | Cap Tant Solid 22uF 20V C CASE 10% (6 X 3.2 X 2.5mm) SMD 6032-28 0.375 Ohm 125\u00b0C T R Download PDF datasheet for TR3C226K020C0375.pdf |
|
KEMET | Cap Tant Solid 150uF 6.3V M CASE 20% (3.5 X 2.8 X 1.5mm) SMD 3528-15 0.07 Ohm 105\u00b0C T R Download PDF datasheet for T520M157M006ATE070.pdf |
|

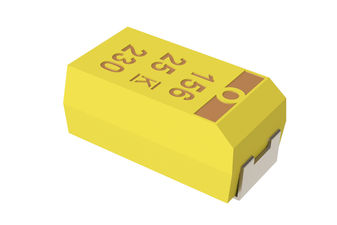

KEMET | Cap Tant Solid 10uF 16V A CASE 10% (3.2 X 1.6 X 1.6mm) SMD 3216-18 3 Ohm 125\u00b0C T R Download PDF datasheet for T494A106K016AT.pdf |
|
