Please contact us for more photos of 594D686X0010C2T
| Part Number | 594D686X0010C2T |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 398770 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 68uF 10V C CASE 20% (7.1 X 3.2 X 2.5mm) SMD 0.1 Ohm 125\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | 594D686X0010C2T |
| Datasheet download |  594D686X0010C2T.pdf |
| Part Number | 594D686X0010C2T |
|---|---|
| Construction | Flat |
| Equivalent Series Resistance | 0.1 Ohm |
| Polarity | Polar |
| Case Style | Conformal Coated |
| Rad Hard | No |
| Case Code | C |
| Dissipation Factor | 6 % |
| Product Dimensions | 7.1 x 3.2 x 2.5 mm |
| Leakage Current | 6.8 uA |
| MSL Level | 2a |
| Operating Temperature | -55 to 125 °C |
| Tolerance | 20 % |
| Voltage(DC) | 10 V |
| Capacitance Value | 68 uF |
| Max Processing Temp | 250 to 260|260 |
| Mounting | Surface Mount |
| Lead Finish | Tin |
| Package/Case | C |
| Product Depth | 3.2 mm |
| Product Height | 2.5 mm |
| Product Length | 7.1(Max) mm |
| Replacement Part Number | PART-594D686X0010C2T |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Vishay | Cap Tant Solid 100uF 16V D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.075 Ohm 125\u00b0C Embossed Plastic T R Download PDF datasheet for TR3D107M016C0075.pdf |
|
AVX | Cap Tant Solid 3.3uF 20V B CASE 10% (3.5 X 2.8 X 1.9mm) SMD 3528-21 3 Ohm 125\u00b0C T R Download PDF datasheet for TAJB335K020RNJ.pdf |
|
AVX | Cap Tant Solid 3.3uF 35V B CASE 20% (3.5 X 2.8 X 1.9mm) SMD 3528-21 3.5 Ohm 125\u00b0C T R Download PDF datasheet for TAJB335M035RNJ.pdf |
|
Vishay | Cap Tant Solid 47uF 10V B CASE 20% (3.5 X 2.8 X 1.9mm) SMD 3528-21 0.07 Ohm 105\u00b0C T R Download PDF datasheet for T55B476M010C0070.pdf |
|
Vishay | Cap Tant Solid 22uF 20V C CASE 20% (6 X 3.2 X 2.5mm) SMD 6032-28 1.1 Ohm 125\u00b0C T R Download PDF datasheet for 293D226X0020C2WE3.pdf |
|
KEMET | Cap Tant Solid 2.2uF 10V A CASE 10% (3.2 X 1.6 X 1.6mm) SMD 3216-18 6 Ohm 125\u00b0C T R Download PDF datasheet for T494A225K010AT.pdf |
|
AVX | Cap Tant Solid 330uF 10V E CASE 10% (7.3 X 4.3 X 4.1mm) SMD 7343-43 0.06 Ohm 125\u00b0C T R Download PDF datasheet for TPSE337K010R0060.pdf |
|
KEMET | Cap Tant Solid 220uF 10V X CASE 20% (7.3 X 4.3 X 4mm) SMD 7343-43 0.1 Ohm 125\u00b0C T R Download PDF datasheet for T495X227M010ATE100.pdf |
|

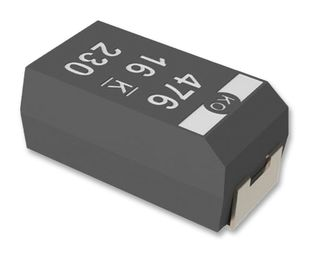

KEMET | Cap Tant Solid 1000uF 6.3V H CASE 20% (7.3 X 6.1 X 2mm) SMD 7260-20 0.055 Ohm 125\u00b0C T R Download PDF datasheet for T520H108M006ATE055.pdf |
|

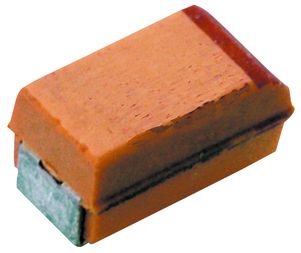

KEMET | Cap Tant Solid 330uF 6.3V B CASE 20% (3.5 X 2.8 X 1.9mm) SMD 3528-21 0.07 Ohm 125\u00b0C T R Download PDF datasheet for T520B337M006ATE070.pdf |
