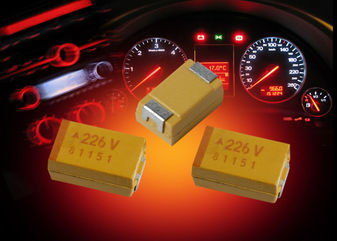

Please contact us for more photos of 597D226X9050R2T
| Part Number | 597D226X9050R2T |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 511850 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 22uF 50V R CASE 10% (7.3 X 6 X 3.6mm) SMD T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | 597D226X9050R2T |
| Datasheet download |  597D226X9050R2T.pdf |
| Part Number | 597D226X9050R2T |
|---|---|
| Polarity | Polar |
| Product Dimensions | 7.3 x 6 x 3.6 mm |
| Construction | Flat |
| Mounting | Surface Mount |
| Package/Case | R |
| Type | Flat |
| Operating Temperature | -55 to 125 °C |
| MSL Level | 2a |
| Lead Finish | Tin |
| Capacitance Value | 22 uF |
| Voltage(DC) | 50 V |
| Leakage Current | 11 uA |
| Tolerance | 10 % |
| Max Processing Temp | 245 |
| Equivalent Series Resistance | 0.22 Ohm |
| Case Code | R |
| Case Style | Conformal Coated |
| Dissipation Factor | 6 % |
| Product Depth | 6 mm |
| Product Height | 3.6 mm |
| Product Length | 7.3 mm |
| Replacement Part Number | PART-597D226X9050R2T |
| Weight | Contact us |
| Country of Origin | - |
