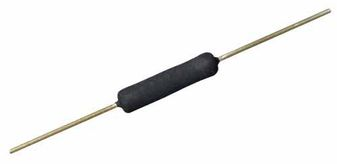

Please contact us for more photos of CPF224R000BHEE6
| Part Number | CPF224R000BHEE6 |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 319050 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Metal Film 24 Ohm 0.1% 2W \u00b150ppm \u00b0C Conformal Axial Thru-Hole T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Through Hole |
| ROHS Compliant | Yes |
| MSL Level | CPF224R000BHEE6 |
| Datasheet download |  CPF224R000BHEE6.pdf |
| Part Number | CPF224R000BHEE6 |
|---|---|
| Pin Count | 2 |
| Mounting | Through Hole |
| Rad Hard | No |
| Termination Style | Axial |
| Temperature Coefficient | ±50 ppm/°C |
| Lead Finish | Matte Tin |
| Resistance Value | 24 Ohm |
| Max Processing Temp | 260 |
| Operating Temperature | -65 to 230 °C |
| MSL Level | 1 |
| Tolerance | 0.1 % |
| Supplier Package | Axial |
| Power Rating | 2 W |
| Product Dimensions | 3.68 x 10.8(Max) |
| Case Style | Conformal |
| Product Diameter | 3.68 mm |
| Product Length | 10.8(Max) mm |
| Replacement Part Number | PART-CPF224R000BHEE6 |
| Weight | Contact us |
| Country of Origin | - |
