Please contact us for more photos of CSC05A0147K0GEK
| Part Number | CSC05A0147K0GEK |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 321420 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film NET 47K Ohm 2% 31 50W \u00b1100ppm \u00b0C BUS Conformal 5-Pin SIP Pin Thru-Hole Bulk |
| Category | Resistor |
| Family | Resistor Networks and Arrays |
| ROHS Compliant | Yes |
| MSL Level | CSC05A0147K0GEK |
| Datasheet download |  CSC05A0147K0GEK.pdf |
| Part Number | CSC05A0147K0GEK |
|---|---|
| Power Rating per Resistor | 1/5 W |
| Terminal Pitch | 2.54 mm |
| Case Style | Conformal |
| Power Rating | 0.62 W |
| Rad Hard | No |
| Max Processing Temp | 260 |
| Product Dimensions | 12.45 x 2.49 x 4.95 mm |
| Technology | Thick Film |
| Tolerance | 2 % |
| Mounting | Through Hole |
| Termination Style | Pin |
| Type | Network |
| Resistance Value | 47 kOhm |
| Package Type | SIP |
| MSL Level | 1 |
| Operating Temperature | -55 to 125 °C |
| Temperature Coefficient | ±100 ppm/°C |
| Lead Finish | Tin |
| Product Depth | 2.49 mm |
| Product Height | 4.95 mm |
| Product Length | 12.45 mm |
| Replacement Part Number | PART-CSC05A0147K0GEK |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Vishay | Res Thin Film Array 10K 50K Ohm 0.1% 3 20W \u00b125ppm \u00b0C ISOL Molded 4-Pin 0606 Convex SMD T R Download PDF datasheet for ACASN1002S5002P1AT.pdf |
|
Bourns | Res Thick Film Array 33 Ohm 5% 1 8W \u00b1250ppm \u00b0C ISOL Molded 8-Pin 0804 Convex SMD Paper T R Download PDF datasheet for CAY10-330J4LF.pdf |
|
CTS | Res Thick Film Array 22 Ohm 5% 2 5W \u00b1200ppm \u00b0C ISOL Molded 8-Pin 2008(4 X 0805) Concave SMD Plastic T R Download PDF datasheet for 743C083220JP.pdf |
|

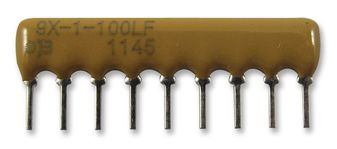

Bourns | Res Thick Film NET 10K Ohm 2% 1.25W \u00b1100ppm \u00b0C BUS Conformal 10-Pin SIP Pin Thru-Hole Bulk Download PDF datasheet for 4610X-101-103LF.pdf |
|
Panasonic | Res Thick Film Array 100K Ohm 5% \u00b1200ppm \u00b0C ISOL Molded 4-Pin 0606(2 X 0603) Convex SMD Punched Carrier T R Download PDF datasheet for EXB34V104JV.pdf |
|
Bourns | Res Thick Film Array 10K Ohm 1% ISOL Molded 8-Pin 1206 Convex SMD Paper T R Download PDF datasheet for CAY16-1002F4LF.pdf |
|

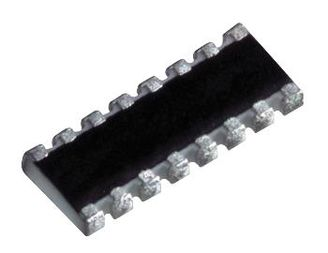

Panasonic | Res Thick Film Array 47 Ohm 5% 1 4W \u00b1200ppm \u00b0C ISOL Molded 16-Pin 1506(8 X 0402) Convex SMD Punched Carrier T R Download PDF datasheet for EXB2HV470JV.pdf |
|
