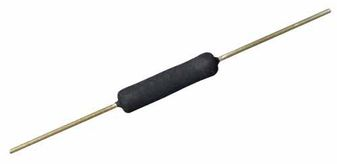

Please contact us for more photos of HVR3700001005FR500
| Part Number | HVR3700001005FR500 |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 137100 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Metal Film 10M Ohm 1% 1 2W \u00b1200ppm \u00b0C Conformal Axial Thru-Hole T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Through Hole |
| ROHS Compliant | Yes |
| MSL Level | HVR3700001005FR500 |
| Datasheet download |  HVR3700001005FR500.pdf |
| Part Number | HVR3700001005FR500 |
|---|---|
| Pin Count | 2 |
| Mounting | Through Hole |
| Rad Hard | No |
| Operating Temperature | -55 to 155 °C |
| Temperature Coefficient | ±200 ppm/°C |
| Termination Style | Axial |
| Type | Metal Film |
| Max Processing Temp | 260 |
| Resistance Value | 10 MOhm |
| Case Style | Conformal |
| Tolerance | 1 % |
| Product Dimensions | 4(Max) x 12(Max) |
| Power Rating | 0.5 W |
| Supplier Package | Axial |
| Product Diameter | 4(Max) mm |
| Product Length | 12(Max) mm |
| Product Weight | 500 mg |
| Replacement Part Number | PART-HVR3700001005FR500 |
| Weight | Contact us |
| Country of Origin | - |
