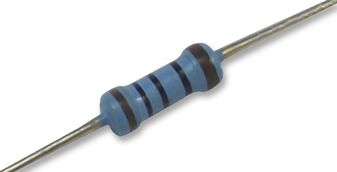

Please contact us for more photos of PR02000202209JR500
| Part Number | PR02000202209JR500 |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 862100 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Metal Film 22 Ohm 5% 2W \u00b1250ppm \u00b0C Conformal AXL Thru-Hole T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Through Hole |
| ROHS Compliant | Yes |
| MSL Level | PR02000202209JR500 |
| Datasheet download |  PR02000202209JR500.pdf |
| Part Number | PR02000202209JR500 |
|---|---|
| Temperature Coefficient | ±250 ppm/°C |
| Power Rating | 2 W |
| Mounting | Through Hole |
| Type | Metal Film |
| Operating Temperature | -55 to 155 °C |
| Lead Finish | Tin |
| Product Dimensions | 12 mm |
| Rad Hard | No |
| Max Processing Temp | 260 |
| Tolerance | 5 % |
| Resistance Value | 22 Ohm |
| Case Style | Conformal |
| Termination Style | Axial |
| Product Diameter | 3.9 mm |
| Product Length | 12 mm |
| Product Weight | 504 mg |
| Replacement Part Number | PART-PR02000202209JR500 |
| Weight | Contact us |
| Country of Origin | - |
