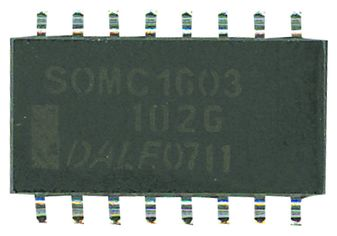

Please contact us for more photos of SOMC160110K0GEA
| Part Number | SOMC160110K0GEA |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 568260 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film NET 10K Ohm 2% 1.2W \u00b1100ppm \u00b0C BUS Molded 16-Pin DIP Gull Wing SMD T R |
| Category | Resistor |
| Family | Resistor Networks and Arrays |
| ROHS Compliant | Yes |
| MSL Level | SOMC160110K0GEA |
| Datasheet download |  SOMC160110K0GEA.pdf |
| Part Number | SOMC160110K0GEA |
|---|---|
| Power Rating per Resistor | 2/25 W |
| Tolerance | 2 % |
| Package Type | DIP |
| Case Style | Molded |
| Rad Hard | No |
| Type | Network |
| Mounting | Surface Mount |
| Max Processing Temp | 260 |
| Product Dimensions | 11.18 x 7.62 x 2.16 mm |
| Technology | Thick Film |
| Terminal Pitch | 1.27 mm |
| Termination Style | Gull Wing |
| Resistance Value | 10 kOhm |
| Lead Finish | Tin/Copper/Silver |
| Operating Temperature | -55 to 150 °C |
| Power Rating | 1.2 W |
| Temperature Coefficient | ±100 ppm/°C |
| Product Depth | 7.62 mm |
| Product Height | 2.16 mm |
| Product Length | 11.18 mm |
| Replacement Part Number | PART-SOMC160110K0GEA |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|

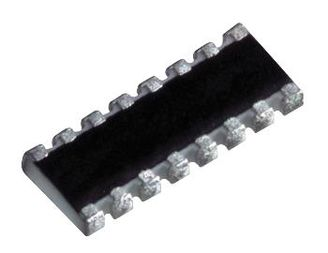

Panasonic | Res Thick Film Array 47K Ohm 5% 1 4W \u00b1200ppm \u00b0C ISOL Molded 16-Pin 1506(8 X 0402) Convex SMD Punched Carrier T R Download PDF datasheet for EXB-2HV473JV.pdf |
|
