VJ1206A272JXAAT Vishay

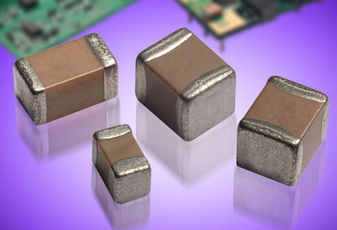

VJ1206A272JXAAT Images

Please contact us for more photos of VJ1206A272JXAAT

Part Number VJ1206A272JXAAT
Manufacturer Vishay
Quantity in stock 397070 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Cap Ceramic 0.0027uF 50V C0G 5% SMD 1206 150\u00b0C Plastic T R
Category Capacitors
Family Capacitor Ceramic Multilayer
ROHS Compliant Yes
MSL Level VJ1206A272JXAAT
Datasheet download VJ1206A272JXAAT.pdf
Request Quotation for VJ1206A272JXAAT

VJ1206A272JXAAT Specifications

Part Number VJ1206A272JXAAT
Package/Case 1206
Lead Finish Matte Tin
Dielectric C0G
Rad Hard No
Case Size 1206
Tolerance 5 %
MSL Level 1
Mounting Surface Mount
Product Dimensions 3.2 x 1.6 x 1.7 mm
Case Style Ceramic Chip
Construction Flat
Capacitance Value 0.0027 uF
Operating Temperature -55 to 150 °C
Voltage(DC) 50 V
Max Processing Temp 235 to 260|260
Product Depth 1.6 mm
Product Height 1.7(Max) mm
Product Length 3.2 mm
Replacement Part Number PART-VJ1206A272JXAAT
Weight Contact us
Country of Origin -
