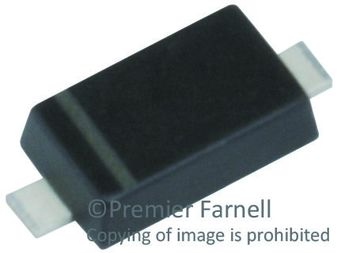

Please contact us for more photos of MM5Z6V2ST1G
| Part Number | MM5Z6V2ST1G |
|---|---|
| Manufacturer | ON Semiconductor |
| Quantity in stock | 120310 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Zener Single 6.195V 2% 200mW 2-Pin SOD-523 T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | MM5Z6V2ST1G |
| Datasheet download |  MM5Z6V2ST1G.pdf |
| Part Number | MM5Z6V2ST1G |
|---|---|
| Supplier Package | SOD-523 |
| Mounting | Surface Mount |
| Nominal Zener Voltage | 6.195 V |
| Product Dimensions | 1.2 x 0.8 x 0.6 mm |
| Pin Count | 2 |
| Maximum Power Dissipation | 200 mW |
| Zener Voltage Tolerance | 2 % |
| Operating Temperature | -65 to 150 °C |
| Maximum Reverse Leakage Current | 3 uA |
| ESD Protection | Yes |
| Configuration | Single |
| Type | Voltage Regulator |
| Test Current | 5 mA |
| Max Processing Temp | 260 |
| Lead Finish | Matte Tin |
| MSL Level | 1 |
| Typical Voltage Temperature Coefficient | 2.05 mV/K |
| Maximum Zener Impedance | 10 Ohm |
| Rad Hard | No |
| Package | 2SOD-523 |
| Replacement Part Number | PART-MM5Z6V2ST1G |
| Weight | Contact us |
| Country of Origin | - |
