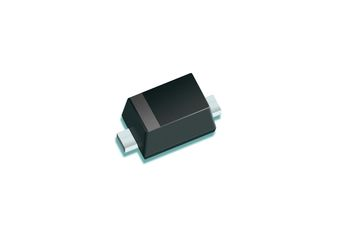

Please contact us for more photos of MMSZ5259B-E3-08
| Part Number | MMSZ5259B-E3-08 |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 238220 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Zener Single 39V 5% 500mW 2-Pin SOD-123 T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | MMSZ5259B-E3-08 |
| Datasheet download |  MMSZ5259B-E3-08.pdf |
| Part Number | MMSZ5259B-E3-08 |
|---|---|
| Maximum Power Dissipation | 500 mW |
| Nominal Zener Voltage | 39 V |
| Pin Count | 2 |
| Zener Voltage Tolerance | 5 % |
| Product Dimensions | 2.85(Max) x 1.7(Max) x 1.25(Max) |
| Operating Temperature | -55 to 150 °C |
| Supplier Package | SOD-123 |
| ESD Protection | Yes |
| Screening Level | Commercial |
| Configuration | Single |
| Lead Finish | Matte Tin |
| Typical Voltage Temperature Coefficient | 0.094 %/°C |
| Mounting | Surface Mount |
| Rad Hard | No |
| MSL Level | 1 |
| Max Processing Temp | 260 |
| Maximum Reverse Leakage Current | 0.1 uA |
| Maximum Zener Impedance | 80 Ohm |
| Test Current | 3.2 mA |
| Type | Voltage Regulator |
| Package | 2SOD-123 |
| Replacement Part Number | PART-MMSZ5259B-E3-08 |
| Weight | Contact us |
| Country of Origin | - |
