Please contact us for more photos of 145802044002829+
| Part Number | 145802044002829+ |
|---|---|
| Manufacturer | AVX |
| Quantity in stock | 898750 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Board to Board PL 44 POS 0.4mm Solder ST SMD T R |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | 145802044002829+ |
| Datasheet download |  145802044002829+.pdf |
| Part Number | 145802044002829+ |
|---|---|
| Maximum Current Rating | 0.3 A |
| Housing Material | Plastic |
| Contact Material | Copper Alloy |
| Lead Finish | Gold |
| Rad Hard | No |
| Operating Temperature | -40 to 85 °C |
| Number of Rows | 2 |
| Gender | PL |
| Termination Method | Solder |
| Mounting | Surface Mount |
| Contact Plating | Gold |
| Maximum Contact Resistance | |
| Product Dimensions | 10.56 x 1.75 x 0.66 mm |
| Pitch | 0.4 mm |
| Type | Board to Board |
| Number of Contacts | |
| Body Orientation | Straight |
| Product Depth | 1.75 mm |
| Product Height | 0.66 mm |
| Product Length | 10.56 mm |
| Replacement Part Number | PART-145802044002829+ |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|

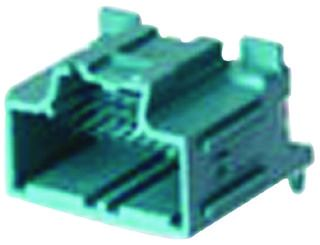

Molex | Conn Wire to Board HDR 20 POS 2.54mm Solder RA Thru-Hole Tray Download PDF datasheet for 34691-0203.pdf |
|
