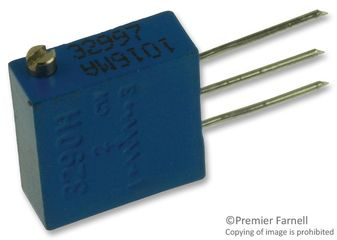

Please contact us for more photos of RTR24DX103M
| Part Number | RTR24DX103M |
|---|---|
| Manufacturer | Bourns |
| Quantity in stock | 213360 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Wirewound Trimmer 10K Ohm 5% 3 4W 1% 25(Elec)Turn 1.52mm (10.55 X 3.81 X 9.53mm) Pin Thru-Hole Tube |
| Category | Resistor |
| Family | Resistor Trimmers, Potentiometers and Rheostats |
| ROHS Compliant | Yes |
| MSL Level | RTR24DX103M |
| Datasheet download |  RTR24DX103M.pdf |
| Part Number | RTR24DX103M |
|---|---|
| Rad Hard | No |
| Temperature Coefficient | ±50 ppm |
| Termination Style | Pin |
| Shaft Diameter | 1.52 mm |
| Technology | Wirewound |
| Number of Turns | 25(Elec) Turns |
| Type | Trimmer |
| Operating Temperature | -65 to 150 °C |
| Tolerance | 5 % |
| Resistance Value | 10 kOhm |
| Mounting | Through Hole |
| Product Dimensions | 10.55 x 3.81 x 9.53 mm |
| Power Rating | 0.75 W |
| Package Type | Through Hole/Pin |
| Product Depth | 3.81 mm |
| Product Height | 9.53 mm |
| Product Length | 10.55 mm |
| Replacement Part Number | PART-RTR24DX103M |
| Weight | Contact us |
| Country of Origin | - |
