SDR0503-150ML Bourns

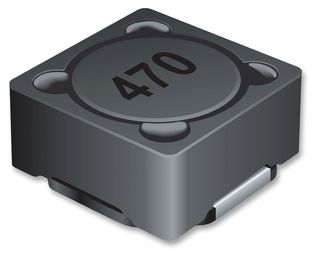

SDR0503-150ML Images

Please contact us for more photos of SDR0503-150ML

Part Number SDR0503-150ML
Manufacturer Bourns
Quantity in stock 124530 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Ind Power Wirewound 15uH 20% 1KHz 20Q-Factor Ferrite 1.05A T R
Category Inductor
Family Inductor Surface Mount
ROHS Compliant Yes
MSL Level SDR0503-150ML
Datasheet download SDR0503-150ML.pdf
Request Quotation for SDR0503-150ML

SDR0503-150ML Specifications

Part Number SDR0503-150ML
Product Dimensions 5.3 x 5.1 x 3.3 mm
Package/Case 5.3 X 5.1 X 3.3
Lead Finish Tin
MSL Level 1
Test Frequency 1 kHz
Technology Wirewound
Rad Hard No
Operating Temperature -40 to 125 °C
Max Processing Temp 230
Tolerance 20 %
Product Depth 5.1 mm
Product Height 3.3 mm
Product Length 5.3 mm
Replacement Part Number PART-SDR0503-150ML
Weight Contact us
Country of Origin -
