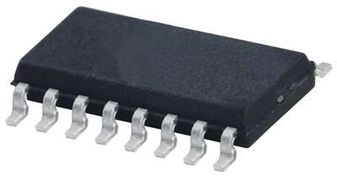

Please contact us for more photos of MC74AC245DWR2G
| Part Number | MC74AC245DWR2G |
|---|---|
| Manufacturer | ON Semiconductor |
| Quantity in stock | 122560 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Bus XCVR Single 8-CH 3-ST 20-Pin SOIC W T R |
| Category | Logic & Timing IC |
| Family | Logic ICs |
| ROHS Compliant | Yes |
| MSL Level | MC74AC245DWR2G |
| Datasheet download |  MC74AC245DWR2G.pdf |
| Part Number | MC74AC245DWR2G |
|---|---|
| Maximum Propagation Delay Time @ Maximum CL | [email protected]|6.5@5V ns |
| Logic Family | AC |
| Output Level | CMOS |
| Output Type | 3-State |
| Number of Selection Inputs per Element | 0 |
| Propagation Delay Test Condition | 50 pF |
| Operating Temperature | -40 to 85 °C |
| Max Processing Temp | 260 |
| Rad Hard | No |
| Number of Output Enables per Element | 1 Low |
| Fabrication Technology | CMOS |
| Input Level | CMOS |
| Polarity | Non-Inverting |
| MSL Level | 3 |
| Number of Elements per Chip | 1 |
| Data Flow Direction | Bi-Directional |
| Supplier Package | SOIC W |
| Logic Function | Bus Transceiver |
| Product Dimensions | 12.95 x 7.6 x 2.4 mm |
| Mounting | Surface Mount |
| Bus Hold | No |
| Maximum Low Level Output Current | 24 mA |
| Minimum Operating Supply Voltage | 2 V |
| Number of Direction Control Inputs | 1 Low/High |
| Maximum High Level Output Current | -24 mA |
| Number of Input Enables per Element | 0 |
| Lead Finish | Matte Tin |
| Pin Count | 20 |
| Typical Operating Supply Voltage | 5 V |
| Number of Channels per Chip | 8 |
| Maximum Operating Supply Voltage | 6 V |
| Maximum Quiescent Current | 8 uA |
| Package | 20SOIC W |
| Replacement Part Number | PART-MC74AC245DWR2G |
| Weight | Contact us |
| Country of Origin | - |
