Please contact us for more photos of PTS080524V010
| Part Number | PTS080524V010 |
|---|---|
| Manufacturer | Eaton |
| Quantity in stock | 315640 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | PTC Resettable Fuse 100A 24VDC T R |
| Category | Circuit Protection |
| Family | PTC Resettable Fuse |
| ROHS Compliant | Yes |
| MSL Level | PTS080524V010 |
| Datasheet download |  PTS080524V010.pdf |
| Part Number | PTS080524V010 |
|---|---|
| Package/Case | 0805 |
| Supplier Package | 0805 |
| Trip Current | 0.3 A |
| Lead Finish | Tin Over Nickel |
| Rad Hard | No |
| Mounting | Surface Mount |
| Seated Plane Height | 1 mm |
| Operating Temperature | -40 to 85 °C |
| Product Dimensions | 2.3(Max) x 1.5(Max) x 1(Max) |
| Max Processing Temp | 260 |
| Product Depth | 1.5(Max) mm |
| Product Height | 1(Max) mm |
| Product Length | 2.3(Max) mm |
| Replacement Part Number | PART-PTS080524V010 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|

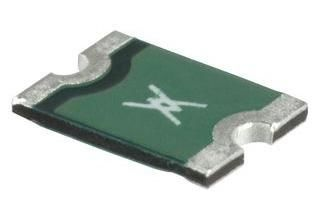

TE Connectivity | PolySwitch Resettable PTC Devices, SMD, nanoSMD Series, 2.0A, 3216 size, T R 3k Download PDF datasheet for NANOSMDC200LR-2.pdf |
|
