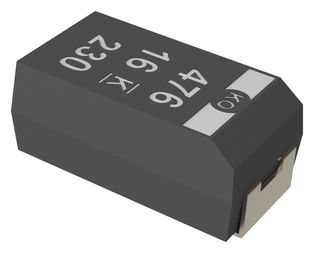

Please contact us for more photos of T525D337M2R5ATE025
| Part Number | T525D337M2R5ATE025 |
|---|---|
| Manufacturer | KEMET |
| Quantity in stock | 518890 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 330uF 2.5V D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | T525D337M2R5ATE025 |
| Datasheet download |  T525D337M2R5ATE025.pdf |
| Part Number | T525D337M2R5ATE025 |
|---|---|
| Package/Case | 7343-31,D |
| Lead Finish | Matte Tin |
| Mounting | Surface Mount |
| Polarity | Polar |
| Dissipation Factor | 10 % |
| Voltage(DC) | 2.5 V |
| Type | Flat |
| Capacitance Value | 330 uF |
| Operating Temperature | -55 to 125 °C |
| Case Code | D |
| Leakage Current | 82.5 uA |
| Product Dimensions | 7.3 x 4.3 x 2.8 mm |
| Case Style | Molded |
| Tolerance | 20 % |
| Max Processing Temp | 250 |
| Case Size | 7343-31 |
| MSL Level | 3 |
| Equivalent Series Resistance | 0.025 Ohm |
| Product Depth | 4.3 mm |
| Product Height | 2.8 mm |
| Product Length | 7.3 mm |
| Replacement Part Number | PART-T525D337M2R5ATE025 |
| Weight | Contact us |
| Country of Origin | - |
