Please contact us for more photos of 0465572145
| Part Number | 0465572145 |
|---|---|
| Manufacturer | Molex |
| Quantity in stock | 810940 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Board to Board RCP 80 POS 1.27mm Solder ST Thru-Hole Embossed T R |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | 0465572145 |
| Datasheet download |  0465572145.pdf |
| Part Number | 0465572145 |
|---|---|
| Product Dimensions | 32.56 x 7.06 x 5 mm |
| Pitch | 1.27 mm |
| Max Processing Temp | 260 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Over Nickel |
| Housing Material | Liquid Crystal Polymer |
| Housing Color | Black |
| Lead Finish | Tin |
| Termination Method | Solder |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Gender | RCP |
| Operating Temperature | -55 to 125 °C |
| Product Depth | 7.06 mm |
| Product Height | 5 mm |
| Product Length | 32.56 mm |
| Replacement Part Number | PART-0465572145 |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|

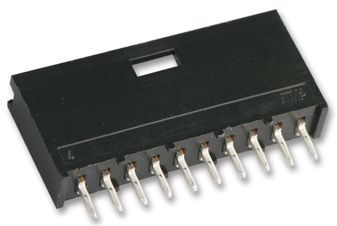

TE Connectivity | Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Reel Download PDF datasheet for 280373-2.pdf |
|
