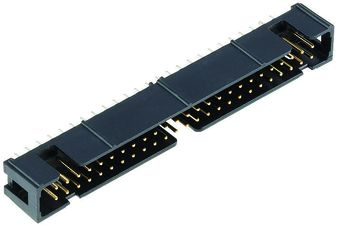

Please contact us for more photos of 0533143065
| Part Number | 0533143065 |
|---|---|
| Manufacturer | Molex |
| Quantity in stock | 848630 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Ejector Header HDR 30 POS 2mm Solder ST Thru-Hole Tray |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | 0533143065 |
| Datasheet download |  0533143065.pdf |
| Part Number | 0533143065 |
|---|---|
| Termination Method | Solder |
| Contact Material | Brass |
| Lead Finish | Tin |
| Gender | HDR |
| Pitch | 2 mm |
| Body Orientation | Straight |
| Mounting | Through Hole |
| Operating Temperature | -40 to 105 °C |
| Contact Plating | Tin |
| Housing Color | Gray |
| Rad Hard | No |
| Product Dimensions | 41.4 x 9 x 15.35 mm |
| Housing Material | Nylon 66 |
| Product Depth | 9 mm |
| Product Height | 15.35 mm |
| Product Length | 41.4 mm |
| Replacement Part Number | PART-0533143065 |
| Weight | Contact us |
| Country of Origin | - |
