NMC0805Y5V224Z25TRPF NIC Components

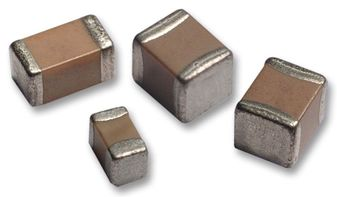

NMC0805Y5V224Z25TRPF Images

Please contact us for more photos of NMC0805Y5V224Z25TRPF

Part Number NMC0805Y5V224Z25TRPF
Manufacturer NIC Components
Quantity in stock 353480 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Cap Ceramic 0.22uF 25V Y5V -20 to 80% SMD 0805 85\u00b0C Punched Carrier T R
Category Capacitors
Family Capacitor Ceramic Multilayer
ROHS Compliant Yes
MSL Level NMC0805Y5V224Z25TRPF
Datasheet download NMC0805Y5V224Z25TRPF.pdf
Request Quotation for NMC0805Y5V224Z25TRPF

NMC0805Y5V224Z25TRPF Specifications

Part Number NMC0805Y5V224Z25TRPF
Product Dimensions 2 x 1.25 x 1.3(Max)
Operating Temperature -30 to 85 °C
Package/Case 0805
Case Style Ceramic Chip
Construction Flat
Voltage(DC) 25 V
Termination Style Wraparound
Tolerance -20 to 80 %
Pin Count 2
Dielectric Y5V
Rad Hard No
Case Size 0805
Supplier Package 0805
Lead Finish Pure Tin Over Nickel
Capacitance Value 0.22 uF
Mounting Surface Mount
Max Processing Temp 260
MSL Level 1
Product Depth 1.25 mm
Product Height 1.3(Max) mm
Product Length 2 mm
Replacement Part Number PART-NMC0805Y5V224Z25TRPF
Weight Contact us
Country of Origin -
