Please contact us for more photos of 8TPE100MAZB
| Part Number | 8TPE100MAZB |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 541410 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Tant Solid 100uF 8V B2 CASE 20% (3.5 X 2.8 X 1.9mm) SMD 3528,B2 0.035 Ohm 105\u00b0C Embossed T R |
| Category | Capacitors |
| Family | Capacitor Tantalum Solid SMT |
| ROHS Compliant | Yes |
| MSL Level | 8TPE100MAZB |
| Datasheet download |  8TPE100MAZB.pdf |
| Part Number | 8TPE100MAZB |
|---|---|
| Polarity | Polar |
| Construction | Flat |
| Mounting | Surface Mount |
| Equivalent Series Resistance | 0.035 Ohm |
| Max Processing Temp | 250|260 |
| Lead Finish | Palladium|Gold |
| Package/Case | 3528,B2 |
| Dissipation Factor | 8 % |
| Voltage(DC) | 8 V |
| Operating Temperature | -55 to 105 °C |
| MSL Level | 3 |
| Case Size | 1411 |
| Case Code | B2 |
| Supplier Package | 1411 |
| Leakage Current | 80@5Min uA |
| Rad Hard | No |
| Pin Count | 2 |
| Case Style | Molded |
| Tolerance | 20 % |
| Capacitance Value | 100 uF |
| Product Depth | 2.8 mm |
| Product Height | 1.9 mm |
| Product Length | 3.5 mm |
| Replacement Part Number | PART-8TPE100MAZB |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
AVX | Cap Tant Solid 47uF 10V C CASE 10% (6 X 3.2 X 2.6mm) SMD 6032-28 1.2 Ohm 125\u00b0C T R Download PDF datasheet for TAJC476K010RNJ.pdf |
|
AVX | Cap Tant Solid 100uF 16V E CASE 20% (7.3 X 4.3 X 4.1mm) SMD 7343-43 0.04 Ohm 105\u00b0C T R Download PDF datasheet for TCJE107M016R0040.pdf |
|
AVX | Cap Tant Solid 10uF 6.3V B CASE 20% (3.5 X 2.8 X 1.9mm) SMD 3528-21 3 Ohm 125\u00b0C T R Download PDF datasheet for TAJB106M006RNJ.pdf |
|

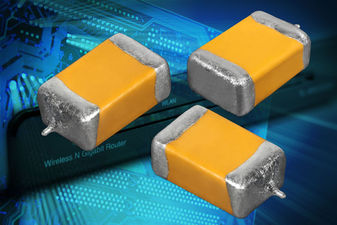

AVX | Cap Tant Solid 330uF 6.3V B CASE 20% (3.5 X 2.8 X 1.8mm) SMD 3528-20 0.6Ohm 125\u00b0C T R Download PDF datasheet for F950J337MBAAQ2.pdf |
|
AVX | Cap Tant Solid 47uF 25V D CASE 10% (7.3 X 4.3 X 2.9mm) SMD 7343-31 0.54 Ohm 125\u00b0C T R Download PDF datasheet for TRJD476K025RRJ.pdf |
|
AVX | Cap Tant Solid 47uF 10V D CASE 20% (7.3 X 4.3 X 2.9mm) SMD 7343-31 0.9 Ohm 125\u00b0C T R Download PDF datasheet for TAJD476M010RNJ.pdf |
|
Panasonic | Cap Tant Solid 68uF 16V D2 CASE 20% (7.3 X 4.3 X 1.9mm) SMD 7343,D2 0.05 Ohm 105\u00b0C Embossed T R Download PDF datasheet for 16TQC68MYF.pdf |
|
Vishay | Cap Tant Solid 33uF 16V D CASE 10% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.7 Ohm 125\u00b0C T R Download PDF datasheet for 293D336X9016D2TE3.pdf |
|

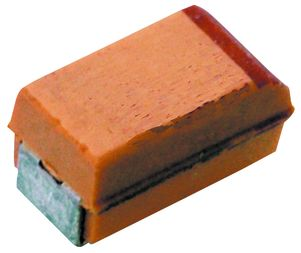

KEMET | Cap Tant Solid 47uF 16V D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.09 Ohm 105\u00b0C Embossed Plastic T R Download PDF datasheet for T521D476M016ATE090.pdf |
|

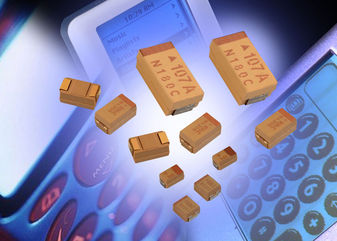

AVX | Cap Tant Solid 47uF 10V G CASE 20% (3.2 X 1.6 X 1.5mm) SMD 3216-16 1.5 Ohm 125\u00b0C T R Download PDF datasheet for TLJG476M010R1500.pdf |
