Please contact us for more photos of AXE624124D
| Part Number | AXE624124D |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 505380 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Board to Board HDR 24 POS 0.4mm Solder ST SMD Embossed T R |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | AXE624124D |
| Datasheet download |  AXE624124D.pdf |
| Part Number | AXE624124D |
|---|---|
| Number of Contacts | 24 |
| Contact Plating | Gold Over Nickel |
| Package Dimensions | 6.6 x 1.42 x 0.65 mm |
| Gender | HDR |
| Number of Rows | 2 |
| Type | Board to Board |
| Pitch | 0.4 mm |
| Housing Material | Liquid Crystal Polymer |
| Operating Temperature | -55 to 85 °C |
| Maximum Contact Resistance | 90 MOhm |
| Rad Hard | No |
| Pin Count | 24 |
| Maximum Voltage Rating | 60 Vdc |
| Maximum Current Rating | 0.3 A |
| Contact Material | Copper Alloy |
| Lead Finish | Gold Over Nickel |
| Maximum Processing Temperature | 260 °C |
| Mounting | Surface Mount |
| Termination Method | Solder |
| Body Orientation | Straight |
| Product Depth | 1.42 mm |
| Product Height | 0.65 mm |
| Product Length | 6.6 mm |
| Replacement Part Number | PART-AXE624124D |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|

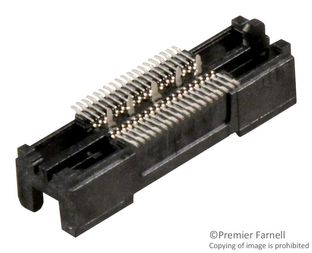

TE Connectivity | Conn High Speed Fine Pitch Connector RCP 38 POS 2.54mm 0.64mm Solder ST Thru-Hole SMD Tube Download PDF datasheet for 2-5767004-2.pdf |
|
