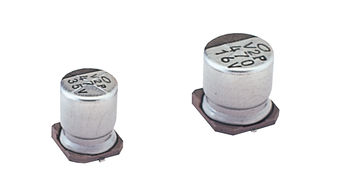

Please contact us for more photos of EEEHD1E101AP
| Part Number | EEEHD1E101AP |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 353520 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Cap Aluminum 100uF 25V 20% (8 X 10.2mm) SMD 130mA 5000 hr 105\u00b0C T R |
| Category | Capacitors |
| Family | Capacitor Aluminum |
| ROHS Compliant | Yes |
| MSL Level | EEEHD1E101AP |
| Datasheet download |  EEEHD1E101AP.pdf |
| Part Number | EEEHD1E101AP |
|---|---|
| Leakage Current | 25@2Min uA |
| Package/Case | 8 X 10.2 |
| Ripple Current | 130 mA |
| Mounting | Surface Mount |
| Construction | Cylindrical |
| Operating Temperature | -40 to 105 °C |
| Voltage(DC) | 25 V |
| Capacitance Value | 100 uF |
| Rad Hard | No |
| Tolerance | 20 % |
| Max Processing Temp | 260 |
| Product Dimensions | 10.2 mm |
| Lead Finish | Tin/Bismuth |
| Product Diameter | 8 mm |
| Product Height | 10.2 mm |
| Replacement Part Number | PART-EEEHD1E101AP |
| Weight | Contact us |
| Country of Origin | - |
