Please contact us for more photos of ERJ-3EKF1822V
| Part Number | ERJ-3EKF1822V |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 670620 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film 0603 18.2K Ohm 1% 1 10W \u00b1100ppm \u00b0C Molded SMD SMD Punched Carrier T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | ERJ-3EKF1822V |
| Datasheet download |  ERJ-3EKF1822V.pdf |
| Part Number | ERJ-3EKF1822V |
|---|---|
| Resistance Value | 18.2 kOhm |
| Product Dimensions | 1.6 x 0.8 x 0.45 mm |
| Case Style | Molded |
| Rad Hard | No |
| Max Processing Temp | 260 |
| Mounting | Surface Mount |
| Temperature Coefficient | ±100 ppm/°C |
| Case Size | 0603 |
| Operating Temperature | -55 to 155 °C |
| Lead Finish | Tin |
| Power Rating | 0.1 W |
| Tolerance | 1 % |
| Product Depth | 0.8 mm |
| Product Height | 0.45 mm |
| Product Length | 1.6 mm |
| Product Weight | 2 mg |
| Replacement Part Number | PART-ERJ-3EKF1822V |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Panasonic | Res Thick Film 0805 1.5 Ohm 1% 1 8W \u00b1200ppm \u00b0C Molded SMD Punched Carrier T R Download PDF datasheet for ERJ6RQF1R5V.pdf |
|
ROHM | Res Thick Film 0402 7.5K Ohm 1% 1 16W \u00b1100ppm \u00b0C Molded SMD Paper T R Download PDF datasheet for MCR01MZPF7501.pdf |
|

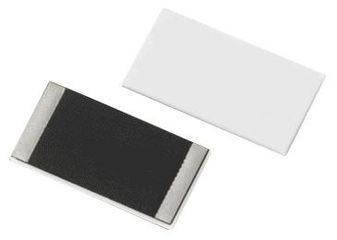

Vishay | Res Metal Strip 1206 0.1 Ohm 1% 1 4W \u00b175ppm \u00b0C Molded SMD SMD Embossed Plastic T R Download PDF datasheet for WSL1206R1000FEA.pdf |
|
