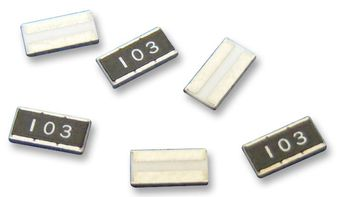

Please contact us for more photos of ERJ3GEYJ223V
| Part Number | ERJ3GEYJ223V |
|---|---|
| Manufacturer | Panasonic |
| Quantity in stock | 746280 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Res Thick Film 0603 22K Ohm 5% 1 10W \u00b1200ppm \u00b0C Molded SMD Punched Carrier T R |
| Category | Resistor |
| Family | Resistor Fixed Single-Surface Mount |
| ROHS Compliant | Yes |
| MSL Level | ERJ3GEYJ223V |
| Datasheet download |  ERJ3GEYJ223V.pdf |
| Part Number | ERJ3GEYJ223V |
|---|---|
| Case Style | Molded |
| Product Dimensions | 1.6 x 0.8 x 0.45 mm |
| Temperature Coefficient | ±200 ppm/°C |
| Rad Hard | No |
| Type | Thick Film |
| Tolerance | 5 % |
| Max Processing Temp | 260 |
| Mounting | Surface Mount |
| Resistance Value | 22 kOhm |
| Operating Temperature | -55 to 155 °C |
| Package Type | SMD |
| Case Size | 0603 |
| Lead Finish | Tin |
| Power Rating | 0.1 W |
| Product Depth | 0.8 mm |
| Product Height | 0.45 mm |
| Product Length | 1.6 mm |
| Product Weight | 2 mg |
| Replacement Part Number | PART-ERJ3GEYJ223V |
| Weight | Contact us |
| Country of Origin | - |
