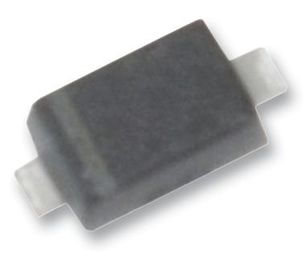

Please contact us for more photos of B360A-E3 5AT
| Part Number | B360A-E3 5AT |
|---|---|
| Manufacturer | Vishay |
| Quantity in stock | 524850 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Schottky 60V 3A 2-Pin SMA T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | B360A-E3 5AT |
| Datasheet download |  B360A-E3 5AT.pdf |
| Part Number | B360A-E3 5AT |
|---|---|
| Supplier Package | SMA |
| Lead Finish | Matte Tin |
| Product Dimensions | 4.6 x 2.9 mm |
| Peak Reverse Repetitive Voltage | 60 V |
| Peak Average Forward Current | 3 A |
| MSL Level | 1 |
| Peak Non-Repetitive Surge Current | 50 A |
| Mounting | Surface Mount |
| Peak Forward Voltage | 0.72 V |
| Pin Count | 2 |
| Configuration | Single |
| Rad Hard | No |
| Type | Schottky Diode |
| Peak Reverse Current | 200 uA |
| Max Processing Temp | 260 |
| Operating Temperature | -55 to 150 °C |
| Package | 2SMA |
| Replacement Part Number | PART-B360A-E3 5AT |
| Weight | Contact us |
| Country of Origin | - |
