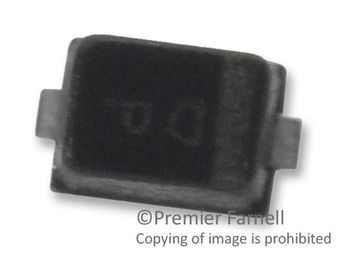

Please contact us for more photos of BAS16LD,315
| Part Number | BAS16LD,315 |
|---|---|
| Manufacturer | Nexperia |
| Quantity in stock | 781680 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Switching 100V 0.1A 2-Pin SOD T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | BAS16LD,315 |
| Datasheet download |  BAS16LD,315.pdf |
| Part Number | BAS16LD,315 |
|---|---|
| Peak Average Forward Current | 0.1 A |
| Peak Non-Repetitive Surge Current | 4 A |
| Peak Reverse Current | 0.5@80V uA |
| Max Processing Temp | 260 |
| Peak Forward Voltage | [email protected] V |
| Configuration | Single |
| Pin Count | 2 |
| Peak Reverse Recovery Time | 4 ns |
| Rad Hard | No |
| Mounting | Surface Mount |
| Lead Finish | Tin |
| Type | Switching Diode |
| Operating Temperature | -55 to 150 °C |
| Peak Reverse Repetitive Voltage | 100 V |
| Supplier Package | SOD |
| Product Dimensions | 1 x 0.6 x 0.36 mm |
| MSL Level | 1 |
| Package | 2SOD |
| Replacement Part Number | PART-BAS16LD,315 |
| Weight | Contact us |
| Country of Origin | - |
