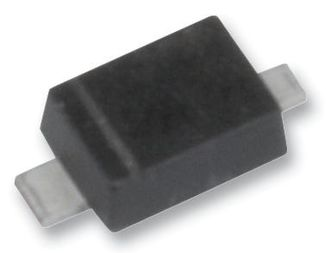

Please contact us for more photos of SBAS16HT1G
| Part Number | SBAS16HT1G |
|---|---|
| Manufacturer | ON Semiconductor |
| Quantity in stock | 648000 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Diode Small Signal Switching 75V 0.2A 2-Pin SOD-323 T R |
| Category | Discrete Semiconductor |
| Family | Diode |
| ROHS Compliant | Yes |
| MSL Level | SBAS16HT1G |
| Datasheet download |  SBAS16HT1G.pdf |
| Part Number | SBAS16HT1G |
|---|---|
| Pin Count | 2 |
| Peak Reverse Recovery Time | 6 ns |
| Rad Hard | No |
| Operating Temperature | -55 to 150 °C |
| Peak Average Forward Current | 0.2 A |
| Configuration | Single |
| Product Dimensions | 1.7 x 1.25 x 0.9 mm |
| Peak Reverse Current | 1 uA |
| Type | Small Signal Switching Diode |
| Peak Forward Voltage | [email protected] V |
| Mounting | Surface Mount |
| MSL Level | 1 |
| Peak Reverse Repetitive Voltage | 75 V |
| Supplier Package | SOD-323 |
| Package | 2SOD-323 |
| Replacement Part Number | PART-SBAS16HT1G |
| Weight | Contact us |
| Country of Origin | - |
