Please contact us for more photos of EJH-110-02-L-D-TH
| Part Number | EJH-110-02-L-D-TH |
|---|---|
| Manufacturer | Samtec |
| Quantity in stock | 822820 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Ejector Header HDR 20 POS 2.54mm Solder ST Thru-Hole Tube |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | EJH-110-02-L-D-TH |
| Datasheet download |  EJH-110-02-L-D-TH.pdf |
| Part Number | EJH-110-02-L-D-TH |
|---|---|
| Housing Material | Liquid Crystal Polymer |
| Number of Rows | 2 |
| Product Dimensions | 43.03 x 9.91 x 16.88 mm |
| Max Processing Temp | 260 |
| Contact Plating | Gold Over Nickel |
| Mounting | Through Hole |
| Contact Material | Phosphor Bronze |
| Type | Ejector Header |
| Lead Finish | Matte Tin |
| Rad Hard | No |
| Termination Method | Solder |
| Number of Contacts | 20 |
| Operating Temperature | -55 to 125 °C |
| Maximum Current Rating | 3/Contact |
| Body Orientation | Straight |
| Gender | HDR |
| Pitch | 2.54 mm |
| Product Depth | 9.91 mm |
| Product Height | 16.88 mm |
| Product Length | 43.03 mm |
| Replacement Part Number | PART-EJH-110-02-L-D-TH |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
TE Connectivity | Conn Wire to Board SKT 16 POS 2.2mm Solder RA Thru-Hole Tube Download PDF datasheet for 1-1318382-3.pdf |
|

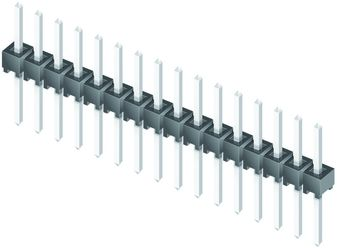

Samtec | Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole Download PDF datasheet for TSW-114-07-G-S.pdf |
|
Molex | Conn Unshrouded Header HDR 10 POS 3.96mm Solder ST Thru-Hole Bulk Download PDF datasheet for 0026481105.pdf |
|
AVX | Conn IDC Connector RCP 2 POS 2.5mm Solder ST SMD Reel Box Download PDF datasheet for 00 9175 002001006.pdf |
|

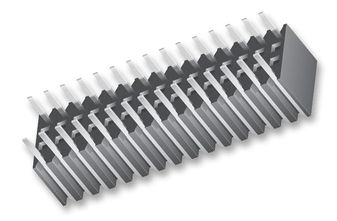

Samtec | Conn Bottom Mount Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Download PDF datasheet for BSW-108-04-G-D.pdf |
|
