Please contact us for more photos of 571FCB000109DG
| Part Number | 571FCB000109DG |
|---|---|
| Manufacturer | Silicon Labs |
| Quantity in stock | 655960 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Controlled Oscillator 622.08MHz VCXO LVDS 8-Pin SMD Tray |
| Category | Logic & Timing IC |
| Family | Controlled Oscillators |
| ROHS Compliant | Yes |
| MSL Level | 571FCB000109DG |
| Datasheet download |  571FCB000109DG.pdf |
| Part Number | 571FCB000109DG |
|---|---|
| Frequency Tolerance | 1.5 ppm |
| Rad Hard | No |
| Supplier Package | SMD |
| Max Processing Temp | 260 |
| Upper Frequency | 622.08 MHz |
| Product Dimensions | 7 x 5 x 1.65 mm |
| Type | Voltage Controlled Crystal Oscillator (VCXO) |
| Output Frequency | 622.08 MHz |
| Maximum Symmetry | 55 % |
| Output Level | LVDS |
| Lead Finish | Nickel/Gold |
| Frequency Stability | ±50 ppm |
| Center Frequency | 622.08 MHz |
| Mounting | Surface Mount |
| Tuning Voltage | 0 to 2.75 V |
| Operating Supply Voltage | 2.5 V |
| MSL Level | 1 |
| Pin Count | 8 |
| Frequency Aging | ±3(1st) ppm/Year |
| Package | 8SMD |
| Replacement Part Number | PART-571FCB000109DG |
| Weight | Contact us |
| Country of Origin | - |
| Image | Part Number and Brand | Brief Description and PDF Datasheet |
|---|---|---|
|
Diodes Incorporated | Controlled Oscillator 16.384MHz TCXO Clipped Sinewave 4-Pin CSMD T R Download PDF datasheet for JT3251S0016.384000.pdf |
|
Integrated Device Technology | Controlled Oscillator 32MHz VCXO HCMOS TTL 14-Pin Metal DIP Download PDF datasheet for 318LF-32-1.pdf |
|
Abracon | Controlled Oscillator 24.576MHz TCXO HCMOS 4-Pin SMD T R Download PDF datasheet for ASTX-H11-24.576MHZ-T.pdf |
|
Seiko Instruments | Controlled Oscillator 16.369MHz TCXO 4-Pin SMD Download PDF datasheet for X1G004211000800.pdf |
|
Fox | Controlled Oscillator 27MHz TCXO HCMOS 4-Pin SMD T R Download PDF datasheet for FOX924B-27.0000.pdf |
|
SiTime Corporation | FIXED FREQUENCY DIFFERENTIAL OSCILLATOR, -20 TO 70C, 7050, 25PPM, 3.3V, 156.25MHZ, OE, LVPECL, SMD Download PDF datasheet for SIT9120AC-1D2-33E156.250000Y.pdf |
|
Abracon | Controlled Oscillator 25MHz TCXO HCMOS 4-Pin SMD T R Download PDF datasheet for ASTX-H11-25.000MHZ-T.pdf |
|
Silicon Labs | Controlled Oscillator 270MHz VCXO LVDS 6-Pin SMD Tray Download PDF datasheet for 595FC270M000DG.pdf |
|
Silicon Labs | Controlled Oscillator 622.08MHz VCXO LVDS 8-Pin SMD T R Download PDF datasheet for 571FCB000109DGR.pdf |
|

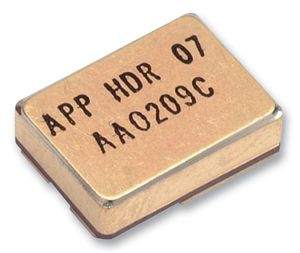

Abracon | Controlled Oscillator 40MHz VC-OCXO LVCMOS 5-Pin SMD Tray Download PDF datasheet for AOCJY-40.000MHz-E.pdf |
