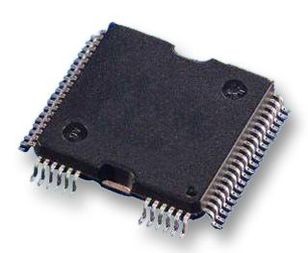

Please contact us for more photos of STM32F100VDT6BTR
| Part Number | STM32F100VDT6BTR |
|---|---|
| Manufacturer | STMicroelectronics |
| Quantity in stock | 184890 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | MCU 32-bit STM32F ARM Cortex M3 RISC 384KB Flash 2.5V 3.3V 100-Pin LQFP T R |
| Category | Microcontrollers MCU IC |
| Family | ARM Based Microcontrollers MCU |
| ROHS Compliant | Yes |
| MSL Level | STM32F100VDT6BTR |
| Datasheet download |  STM32F100VDT6BTR.pdf |
| Part Number | STM32F100VDT6BTR |
|---|---|
| Mounting | Surface Mount |
| Watchdog | 2 |
| Lead Finish | Tin/Silver/Copper |
| MSL Level | 3 |
| Pin Count | 100 |
| Operating Temperature | -40 to 85 °C |
| Data Bus Width | 32 Bit |
| Instruction Set Architecture | RISC |
| Rad Hard | No |
| Program Memory Size | 384 KB |
| RAM Size | 32 KB |
| Max Processing Temp | 260 |
| Number of Timers | 11 |
| On-Chip ADC | 16-chx12-bit |
| Interface Type | I2C/SPI/UART/USART |
| Screening Level | Industrial |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Supply Voltage | 2 V |
| Program Memory Type | Flash |
| Supplier Package | LQFP |
| Maximum Power Dissipation | 434 mW |
| Maximum Speed | 24 MHz |
| Number of Programmable I/Os | 80 |
| Operating Supply Voltage | 2.5|3.3 V |
| Product Dimensions | 14 x 14 x 1.4 mm |
| On-Chip DAC | 2(2-chx12-bit) |
| Device Core | ARM Cortex M3 |
| Package | 100LQFP |
| Replacement Part Number | PART-STM32F100VDT6BTR |
| Weight | Contact us |
| Country of Origin | - |
