1318124-1 TE Connectivity

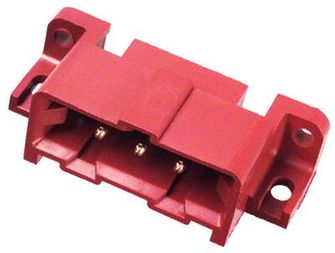

1318124-1 Images

Please contact us for more photos of 1318124-1

Part Number 1318124-1
Manufacturer TE Connectivity
Quantity in stock 593960 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Conn Power M 6 POS 2.5mm Solder ST Thru-Hole 6 Terminal 1 Port Tube
Category Connectors
Family Connector Power
ROHS Compliant Yes
MSL Level 1318124-1
Datasheet download 1318124-1.pdf
Request Quotation for 1318124-1

1318124-1 Specifications

Part Number 1318124-1
Gender M
Pitch 2.5 mm
Mounting Through Hole
Family Name Dynamic Series Wire-Applied Connectors
Body Orientation Straight
Product Dimensions 10.2 x 13.2 x 17.79 mm
Operating Temperature -55 to 105 °C
Rad Hard No
Max Processing Temp 240|260|265
Lead Finish Gold
Housing Material Polyester
Termination Method Solder
Contact Plating Gold Over Nickel
Contact Material Copper Alloy
Product Depth 13.2 mm
Product Height 17.79 mm
Product Length 10.2 mm
Replacement Part Number PART-1318124-1
Weight Contact us
Country of Origin -
