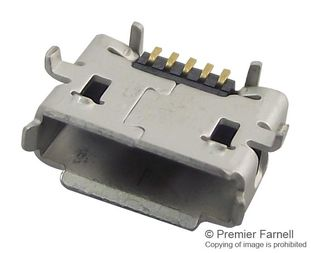

Please contact us for more photos of 1981584-1
| Part Number | 1981584-1 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 431900 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Micro USB RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port T R |
| Category | Connectors |
| Family | Connector Audio and Video |
| ROHS Compliant | Yes |
| MSL Level | 1981584-1 |
| Datasheet download |  1981584-1.pdf |
| Part Number | 1981584-1 |
|---|---|
| Contact Material | Copper Alloy |
| Housing Material | Thermoplastic |
| Pitch | 0.65 mm |
| Number of Terminals | 5 |
| Rad Hard | No |
| Contact Plating | Gold Over Nickel |
| Number of Contacts | 5 |
| Type | Micro USB |
| Termination Method | Solder |
| Product Dimensions | 8.8 x 5.6 x 3 mm |
| Mounting | Surface Mount |
| Family Name | USB Connectors |
| Gender | RCP |
| Body Orientation | Right Angle |
| Number of Ports | 1 |
| Product Depth | 5.6 mm |
| Product Height | 3 mm |
| Product Length | 8.8 mm |
| Replacement Part Number | PART-1981584-1 |
| Weight | Contact us |
| Country of Origin | - |
