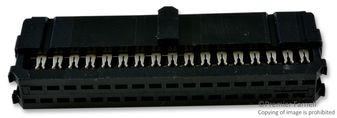

Please contact us for more photos of 2-173145-8
| Part Number | 2-173145-8 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 459170 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn Socket Strip RCP 26 POS 2.54mm Press Fit ST Thru-Hole |
| Category | Connectors |
| Family | Connector Headers and PCB Receptacles |
| ROHS Compliant | Yes |
| MSL Level | 2-173145-8 |
| Datasheet download |  2-173145-8.pdf |
| Part Number | 2-173145-8 |
|---|---|
| Contact Material | Copper Alloy |
| Pitch | 2.54 mm |
| Contact Plating | Gold Over Nickel |
| Rad Hard | No |
| Product Dimensions | 35.6 x 7.6 x 11.9 mm |
| Termination Method | Press Fit |
| Body Orientation | Straight |
| Housing Color | Black |
| Gender | RCP |
| Lead Finish | Tin |
| Operating Temperature | -55 to 125 °C |
| Housing Material | Polybutylene Terephthalate |
| Max Processing Temp | 240|260|265 |
| Mounting | Through Hole |
| Product Depth | 7.6 mm |
| Product Height | 11.9 mm |
| Product Length | 35.6 mm |
| Replacement Part Number | PART-2-173145-8 |
| Weight | Contact us |
| Country of Origin | - |
