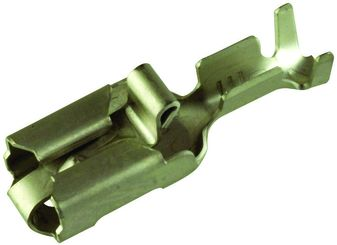

Please contact us for more photos of 2232247-1
| Part Number | 2232247-1 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 499510 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Quick Disconnect Terminal 10-15AWG RCP 20.6mm 7.6mm Tin |
| Category | Connectors |
| Family | Connector Terminals |
| ROHS Compliant | Yes |
| MSL Level | 2232247-1 |
| Datasheet download |  2232247-1.pdf |
| Part Number | 2232247-1 |
|---|---|
| Body Material | Brass |
| Rad Hard | No |
| Tab Size | 5.08 mm² |
| Product Dimensions | 20.6 x 7.6 |
| Gender | RCP |
| Lead Finish | Tin |
| Plating | Tin |
| Wire Size | 14 to 16 AWG |
| Product Depth | 7.6 mm |
| Product Length | 20.6 mm |
| Replacement Part Number | PART-2232247-1 |
| Weight | Contact us |
| Country of Origin | - |
