3-1123309-2 TE Connectivity

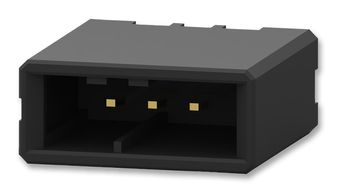

3-1123309-2 Images

Please contact us for more photos of 3-1123309-2

Part Number 3-1123309-2
Manufacturer TE Connectivity
Quantity in stock 628040 Pieces
Market Price -
Our Better Price Send by email: [email protected]
Delivery Time 1 day (can ship today)
Description Conn Power M 4 POS 10.16mm Solder RA Thru-Hole 4 Terminal 1 Port Tube
Category Connectors
Family Connector Power
ROHS Compliant Yes
MSL Level 3-1123309-2
Datasheet download 3-1123309-2.pdf
Request Quotation for 3-1123309-2

3-1123309-2 Specifications

Part Number 3-1123309-2
Contact Plating Gold Over Nickel
Contact Material Copper Alloy
Housing Material Polyester
Lead Finish Gold
Rad Hard No
Operating Temperature -55 to 105 °C
Termination Method Solder
Body Orientation Right Angle
Family Name Dynamic Series Wire-Applied Connectors
Product Dimensions 29.36 x 42.16 x 24.06 mm
Mounting Through Hole
Pitch 10.16 mm
Gender M
Max Processing Temp 240|260|265
Product Depth 42.16 mm
Product Height 24.06 mm
Product Length 29.36 mm
Replacement Part Number PART-3-1123309-2
Weight Contact us
Country of Origin -
