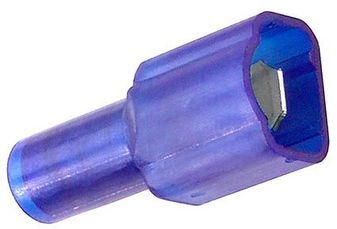

Please contact us for more photos of 3-521142-2
| Part Number | 3-521142-2 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 208680 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Quick Disconnect Terminal 14-16AWG M 23.74mm 13.25mm Tin Strip |
| Category | Connectors |
| Family | Connector Terminals |
| ROHS Compliant | Yes |
| MSL Level | 3-521142-2 |
| Datasheet download |  3-521142-2.pdf |
| Part Number | 3-521142-2 |
|---|---|
| Body Material | Brass |
| Rad Hard | No |
| Type | Quick Disconnect Terminal |
| Family Name | Terminals & Splices |
| Plating | Tin |
| Gender | M |
| Tab Size | 5.16 mm² |
| Wire Size | 14 to 16 AWG |
| Product Dimensions | 23.74 x 13.25 mm |
| Lead Finish | Tin |
| Product Depth | 13.25 mm |
| Product Length | 23.74 mm |
| Replacement Part Number | PART-3-521142-2 |
| Weight | Contact us |
| Country of Origin | - |
