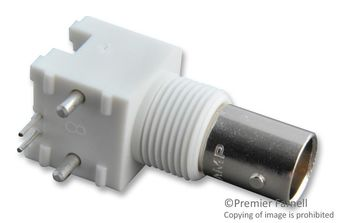

Please contact us for more photos of 5227671-1
| Part Number | 5227671-1 |
|---|---|
| Manufacturer | TE Connectivity |
| Quantity in stock | 175670 Pieces |
| Market Price | - |
| Our Better Price | Send by email: [email protected] |
| Delivery Time | 1 day (can ship today) |
| Description | Conn BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Tin |
| Category | Connectors |
| Family | Connector RF |
| ROHS Compliant | Yes |
| MSL Level | 5227671-1 |
| Datasheet download |  5227671-1.pdf |
| Part Number | 5227671-1 |
|---|---|
| Operating Frequency | 0 to 4 GHz |
| Contact Material | Phosphor Bronze |
| Type | BNC |
| Operating Temperature | -55 to 85 °C |
| Mounting | Through Hole |
| Product Dimensions | 14.76 x 15.88 x 35.57 mm |
| Terminate To | PCB |
| Impedance | 50 |
| Rad Hard | No |
| Gender | RCP |
| Max Processing Temp | 240|260|265 |
| Termination Method | Solder |
| Contact Plating | Tin |
| Body Orientation | Straight |
| Product Depth | 15.88 mm |
| Product Height | 35.57 mm |
| Product Length | 14.76 mm |
| Replacement Part Number | PART-5227671-1 |
| Weight | Contact us |
| Country of Origin | - |
